A dashboard can contain accurate data, well-chosen charts, and polished visuals yet still leave people unsure where to start. Users may struggle to find a specific metric, understand how two numbers relate, or determine whether a filter affects the entire page.
These problems often start with information architecture: how information is organized, connected, named, and made accessible.
Effective dashboard information architecture helps users answer three questions: What am I looking at? What deserves my attention? Where should I go next?
This guide explores six practical principles—structure, navigation, hierarchy, grouping, labeling, and filtering—and shows how to apply them to real design decisions. Together, they help turn a collection of charts into a coherent experience that supports everyday work.
Whether you are designing a sales overview, a customer support workspace, or analytics inside a SaaS product, these principles provide a foundation for making complex information easier to use.
What Is Dashboard Information Architecture?
Dashboard information architecture defines how users encounter and explore data. It determines what belongs together, what appears first, how people move between views, and how they understand each metric's meaning.
Chart selection is one part of this process. A line chart may clearly communicate a trend, but users still need to know why it matters, which population it represents, and where to investigate an unexpected change.
Think of charts as building blocks. Each block has a purpose, but the overall experience depends on how the pieces fit together. Adding more components does not necessarily produce a more useful dashboard.
The six principles address different parts of that experience:
Structure: Distribute information across dashboards and sections according to user needs.
Navigation: Provide clear routes between summaries, related views, and supporting details.
Hierarchy: Match visual emphasis to the importance and relationships of information.
Grouping: Bring related metrics together to support comparison and interpretation.
Labeling: Explain content through clear, consistent language.
Filtering: Let users narrow the data while keeping the current scope understandable.
These principles work together. A well-labeled filter can still confuse users if its scope is unclear. A logically grouped section may go unnoticed if the visual hierarchy gives more prominence to a secondary chart.
Start With Users, Questions, and Decisions
Before arranging charts, identify who will use the dashboard and what they need to accomplish.
A support manager reviewing weekly performance has different needs from an agent monitoring an active queue. Both may use ticket data, but their questions, time frames, and next actions differ.
For each audience, document:
The questions they need to answer.
The decisions or actions those answers support.
How frequently they consult the dashboard.
The level of detail they need.
The terminology and metrics they already understand.
The devices and working conditions involved.
Turn these observations into concrete tasks. “Understand customer support performance” is too broad to guide many design decisions. “Identify which queue needs additional staffing this afternoon” provides a clearer direction.
Next, map each task to the information required. Staffing decisions may depend on ticket volume, queue age, available agents, and handling time. A customer satisfaction score might provide useful context, but it may not belong at the center of that immediate workflow.
This exercise also reveals missing dependencies. A metric without a target, comparison period, or definition may not support the intended decision, even when the underlying data is correct.
1. Structure: Give Every Dashboard a Clear Purpose
Structure determines where information lives and how the overall analytics experience is divided.
Putting every available metric on one screen makes it hard to focus. Splitting information into too many dashboards creates another problem: users must search across disconnected views to answer a single question.
The goal is to create clear boundaries while preserving meaningful connections.
Organize around tasks and areas of responsibility
Business functions can provide a starting point. Sales, finance, operations, and customer support often need distinct analytical spaces.
However, organizational departments do not always match user workflows. A customer retention task might require information from product usage, billing, and support. Strictly separating those sources by department can make the task unnecessarily difficult.
Use users’ questions to determine what belongs together. Make information people regularly need for the same decision accessible within a connected workflow.
Build from overview to detail
An overview dashboard should establish the current situation and provide routes into deeper analysis.

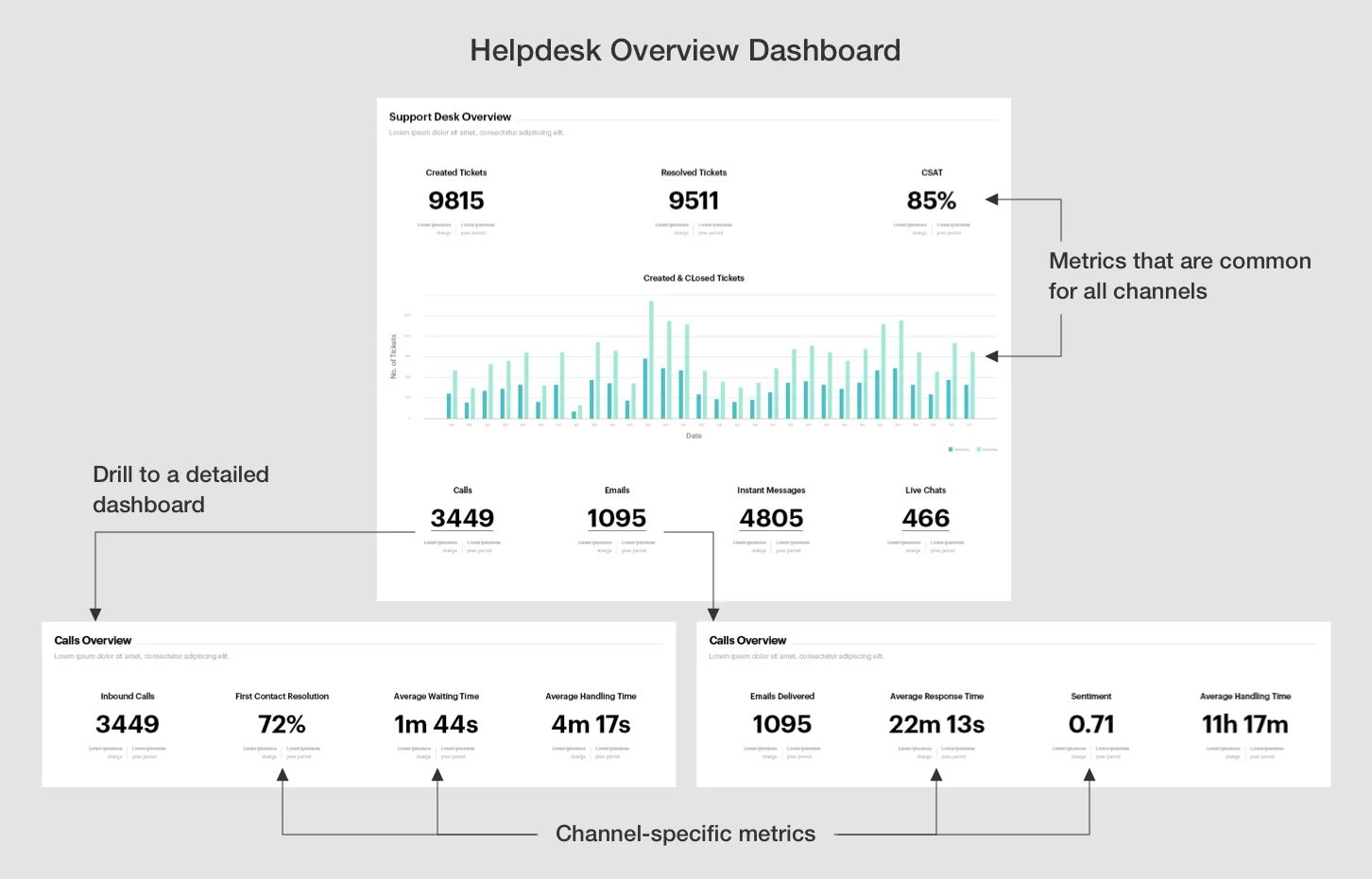

Consider a support center handling calls, emails, and chat messages. A shared overview could show incoming requests, unresolved workload, resolution volume, and customer satisfaction. Channel-specific dashboards could then explain the operational details behind those results.
Phone support may emphasize waiting time and abandoned calls. Email support may focus on first response time and aging conversations. Chat support may need measures of concurrent workload and transfers.
This structure gives users a broad view without forcing different workflows into the same detailed layout.
Define the boundaries of each view
For every dashboard, write a short purpose statement. For example:
This dashboard helps support managers identify workload imbalances and decide where to adjust staffing.
Use that statement to evaluate additions. If a proposed chart does not support the purpose, it may belong elsewhere.
Also define the intended audience, default time period, included data, and available follow-up views. These decisions help keep the structure coherent as new requirements arrive.
Avoid creating separate dashboards for every possible variation. If the purpose and layout remain the same, a filter or saved view may be sufficient.
2. Navigation: Make Exploration Predictable
Navigation helps users move through the structure you have created. It should make the next step understandable and provide a reliable route back.
A useful navigation system supports both planned tasks and open exploration. Someone may arrive knowing they need regional sales results, or notice an unexpected decline and investigate it.

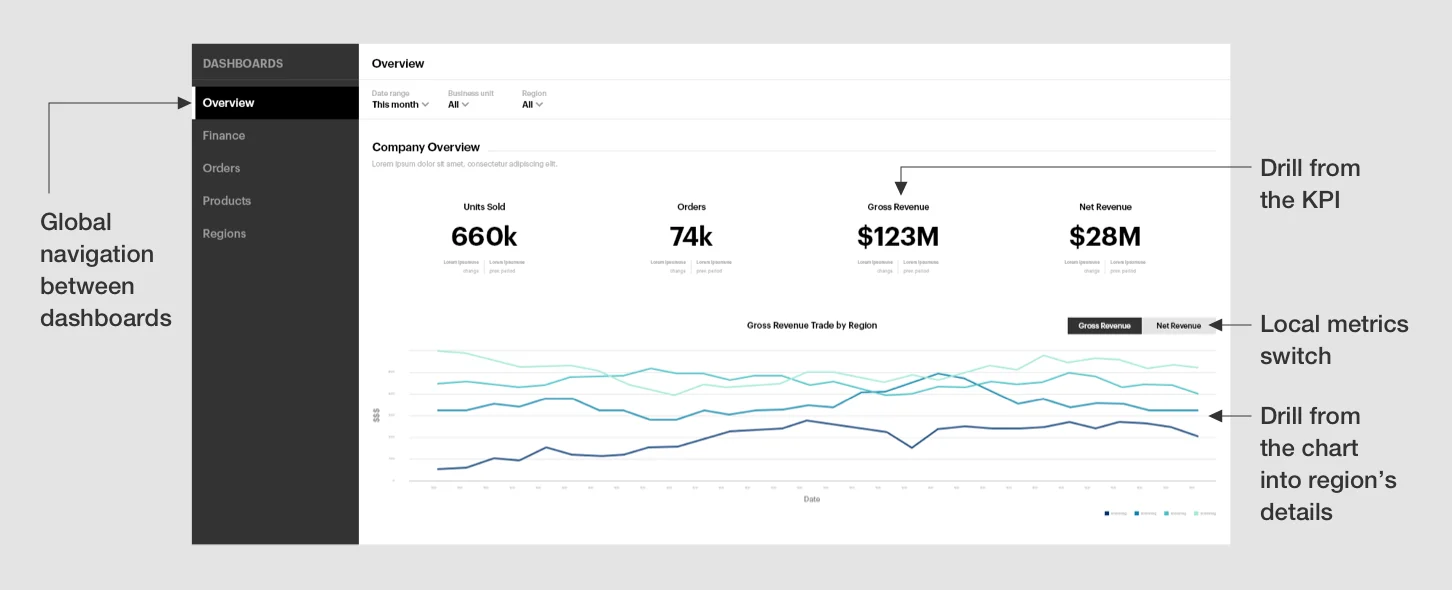

Distinguish global and local navigation
Global navigation moves users between major destinations, such as Sales Overview, Pipeline, and Account Performance. Keep these labels stable and make the current location visible.
Local navigation operates within a dashboard or section. Tabs might switch between summary and detail views, while a metric selector changes the measure shown in a chart.
These controls should communicate different functions. A tab that navigates to another dashboard should not look identical to a filter that updates the current chart unless the distinction is otherwise clear.
Tooltips can explain a metric or provide extra context, but important navigation should not depend on users discovering hidden hover content.
Give drill-downs a clear destination
Drill-downs let users explore more detailed levels of information. A regional sales chart might lead to cities, stores, and individual transactions.
Another interaction might open a separate detail page about a selected customer or product. The exact behavior matters less than making it predictable.
Use labels such as “View city breakdown” or “Open account details” where the destination would otherwise be ambiguous. Avoid making every chart element clickable simply because the platform supports it.
Preserve context during exploration
When users move from an overview to a detail view, carry relevant selections forward where appropriate. If they selected the West region and the previous quarter, the destination should not silently reset to all regions and the current month.
Show the active context in the destination title, filter bar, or summary. Provide a clear back path that restores the previous view.
Links to saved views should also preserve the intended state when feasible, while respecting access permissions.
For keyboard and touch users, ensure that essential navigation is available without hover. Include focus indicators, descriptive control names, and a predictable interaction order from the start.
3. Hierarchy: Align Importance With Attention
Hierarchy determines what users notice first and how they understand relationships between information.

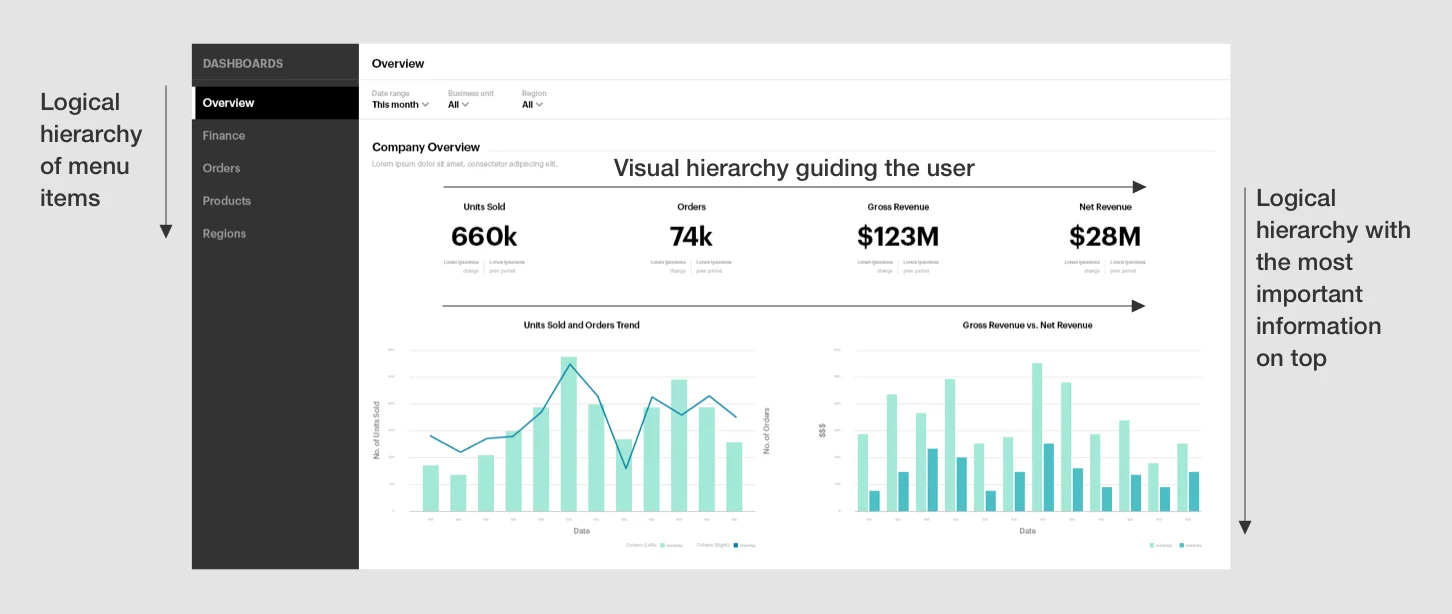

Two types of hierarchy work together: logical hierarchy and visual hierarchy.
Establish the logical hierarchy first
Logical hierarchy describes the relationship between broad outcomes and supporting information.
A sales dashboard might begin with revenue against target, followed by the trends contributing to that result, then a breakdown by region or product. Transaction-level records provide a further layer of detail.
The sequence should support the user’s reasoning:
What is happening?
Where is it happening?
What might explain it?
What should I inspect or do next?
Not every dashboard needs this exact sequence. An operational dashboard may prioritize an urgent exception before the overall performance summary. The hierarchy should reflect the task.
Express priority through design
Use visual hierarchy, placement, size, contrast, typography, and spacing to direct attention.
A primary metric can stand out with a clear heading, appropriate white space, and a nearby target comparison. It does not always need a larger card or a brighter color.
Use emphasis selectively. If every section contains a bold heading, saturated background, and oversized number, users receive few useful signals about priority.
Color should support meaning, with text or symbols providing additional cues. A warning should remain understandable when a user cannot distinguish its color.
Keep context close to the metric
A large number without explanation can attract attention without supporting understanding.
Place relevant context nearby: the unit, time period, comparison, target, and data freshness. If revenue increased, users should be able to tell whether the comparison is against the previous month, the same month last year, or a forecast.
Adapt the hierarchy across screens
A desktop layout may show summaries and supporting charts together. On a smaller screen, those elements become sequential.
Define the reading order deliberately. Keep titles, metrics, and their explanations together, and avoid placing essential filters after the content they control.
Do not rely on a universal rule that every important item belongs in one fixed corner. Reading direction, device size, and the surrounding product interface all influence how users encounter the dashboard.
4. Grouping: Make Relationships Easier to See
Grouping brings related information together so users can compare results and recognize connections.
A useful group answers a coherent set of questions. It should help users understand why its contents belong together.
Group by topic or workflow
A financial dashboard might separate revenue, expenses, and profitability. Each section can contain a summary, trend, and relevant breakdown.
A workflow-based dashboard might instead group information into acquisition, activation, retention, and expansion. This structure follows the stages users are trying to understand.
Choose the approach that best supports the audience’s decisions. Avoid grouping charts only because they share a visual format.
Use repeated groups for comparisons

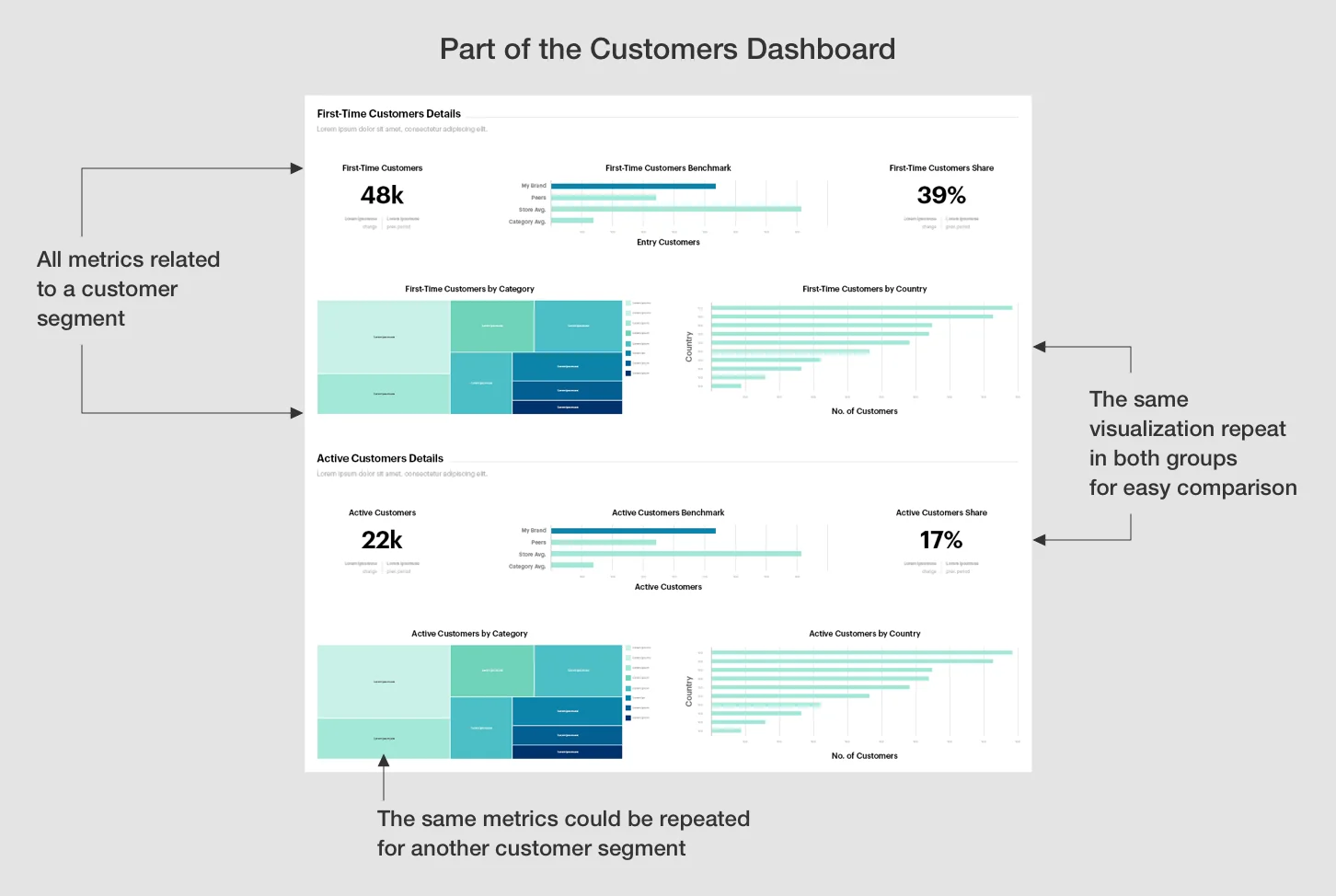

Customer segment analysis often benefits from repeated layouts. Each segment can show the same measures in the same order, making differences easier to scan.
Keep chart scales, time periods, units, and definitions aligned when direct comparison is the goal. Two charts may look similar while showing different ranges, leading users to overestimate or underestimate differences.
If independent scales are necessary, make that clear.
Also explain whether segments overlap. “Active customers” and “high-value customers” may include some of the same people. Users should not assume the groups can be added together.
Use spacing and headings before heavy decoration
Related charts can be grouped through proximity, alignment, and a shared heading. Borders and backgrounds can reinforce a section, but too many containers can make the page feel fragmented.
Use a small set of consistent grouping patterns across the dashboard. Repeated patterns help users learn how to scan new sections.
Support comparisons across groups
Sometimes users need to compare two distant sections. Consider a shared comparison table, a segment selector, or a focused comparison view.
Grouping should reduce analysis effort. If users must repeatedly scroll, remember values, and calculate differences mentally, the layout may need another approach.
5. Labeling: Explain What the Data Means
Labels connect the interface to the user’s understanding. They identify destinations, explain metrics, describe interactions, and establish the boundaries of the data.
A dashboard can be visually polished yet remain difficult to interpret if its terminology is vague or inconsistent.
Use specific, familiar language
Labels such as “Performance,” “Activity,” and “Results” often need more context. “Weekly resolved tickets” tells users more about the content than “Support performance.”
Use the vocabulary your audience understands. Internal database names, unexplained acronyms, and engineering terminology usually need translation before they appear in a business interface.
Where specialized language is necessary, provide an accessible explanation.
Define metrics consistently
Create a shared glossary for frequently used measures. Include the metric name, definition, calculation, unit, exclusions, and responsible owner.
For example, “Active customer” could mean someone who logged in, completed a transaction, or used a particular feature within a defined period. Those definitions produce different results.
The same label should not represent different calculations across dashboards. If definitions differ for a legitimate reason, make the distinction visible.
Give charts enough context

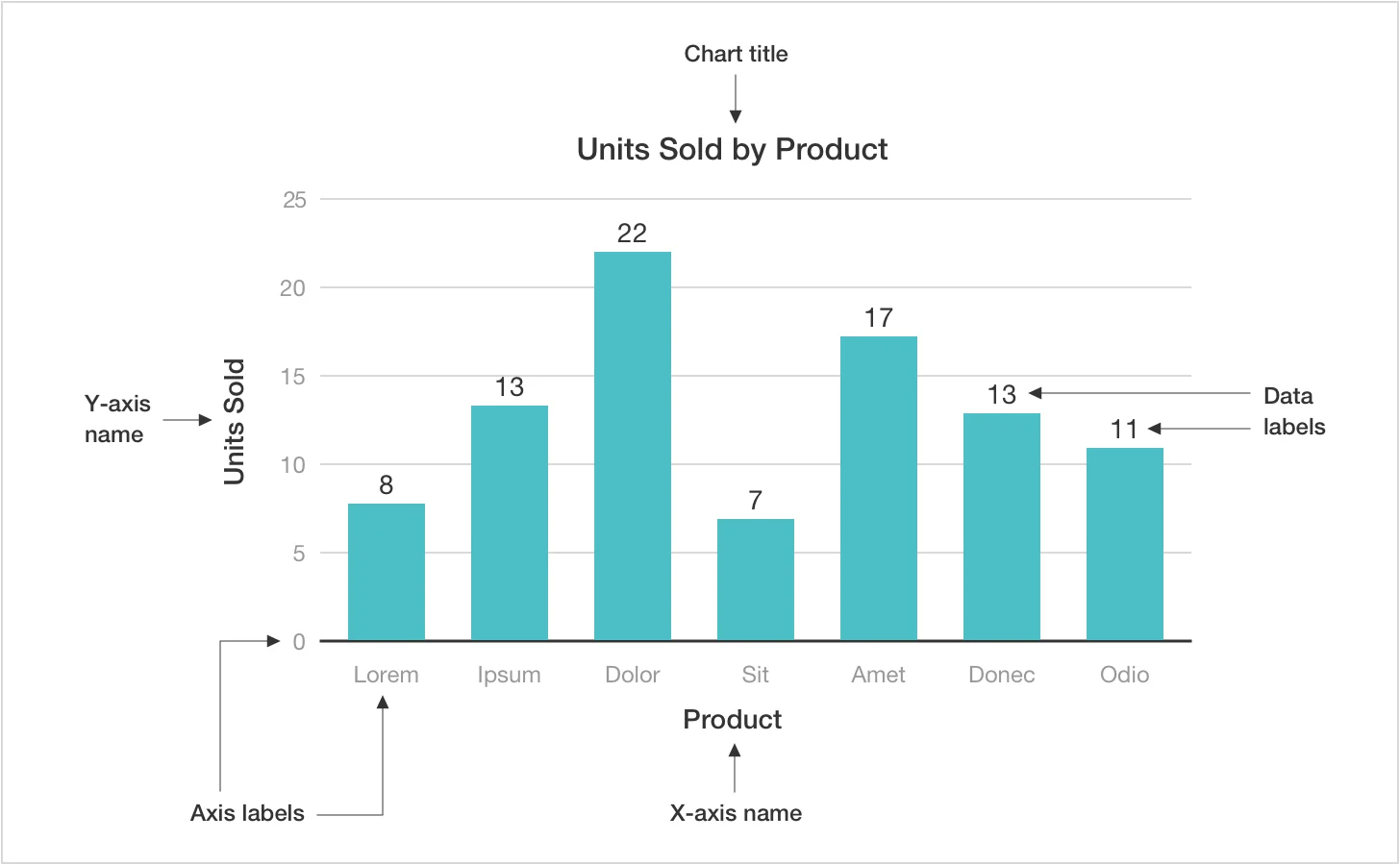

Chart labels should help users identify what is measured, how it is grouped, and which period it covers.
Consider the difference between:
“Revenue”
“Monthly net revenue by region, USD”
The longer version answers several interpretation questions immediately. However, context already shown clearly in a shared section heading does not need to be repeated on every chart.
Balance clarity with unnecessary repetition.
Label states and exceptions
Labels also explain missing or unusual results. Distinguish among zero, unavailable data, restricted access, and a result excluded by filters.
“No matching records for the selected period” gives users more direction than an empty chart.
Show data freshness in terms users can interpret. A refresh timestamp should clarify the time zone when that distinction matters.
Avoid making essential definitions available only through hover. Provide a way to access explanations using a keyboard or touch interface.
6. Filtering: Narrow the Data Without Losing Context
Filters let users focus on the portion of information relevant to their task. They can turn a company-wide overview into a view of a particular country, business unit, product category, or customer segment.
Their usefulness depends on whether users understand both the selection and its effect.
Match controls to the selection task
Use controls that fit the number and type of options:
A short set of buttons can support quick switching between a few choices.
A searchable selector can help users find items in a long list.
A date picker supports specific periods.
A range control can narrow continuous values, with direct entry available when precision matters.
A multi-select control supports comparing or combining categories.
Avoid exposing every available dimension by default. Prioritize the filters people regularly need and make secondary options available without crowding the main view.
Make filter scope explicit
Users should know whether a filter affects one chart, a section, or the entire dashboard.

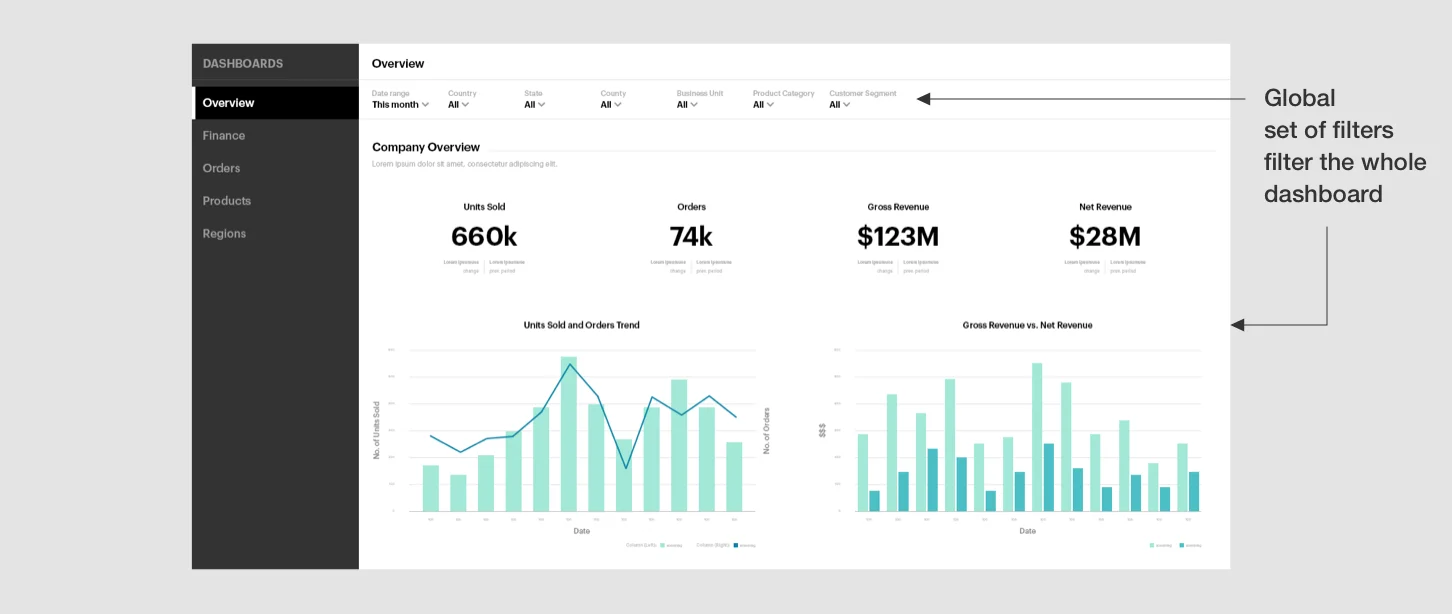

Place local filters near the content they control. Give global filters a consistent location and show active selections clearly.
Cross-filtering, where selecting a chart element changes other charts, needs visible feedback. A highlighted selection, scope indicator, and clear reset action help users understand the resulting state.
Choose useful defaults
Defaults should support the most common task. A weekly review dashboard may open on the last complete week, while an operational view may begin with the current shift.
Specify whether date ranges include partial periods. Comparing an incomplete month with a full prior month can create misleading impressions even when the calculations are technically correct.
Saved views can reduce repeated setup, but users should be able to identify and change their active settings.
Plan for empty results and slow updates
Some combinations will return no data. Explain whether the result is genuinely empty or whether a selection conflicts with another filter.
During updates, show loading feedback and avoid presenting old values as if they already reflect new selections. If several filters are expensive to apply, an explicit “Apply filters” action may provide a more predictable experience.
Finally, filters are exploration tools. Access permissions must be enforced separately so users cannot reveal restricted information by changing interface controls.
A Practical Workflow for Designing Dashboard Architecture
Apply the six principles through a sequence that connects research, design, and validation.
1. Audit the existing information
List the available dashboards, metrics, data sources, and recurring reports. Identify duplicates, conflicting definitions, and views that no longer support an active task.
Review how people currently find answers, including workarounds such as exported spreadsheets or messages to analysts. These behaviors can reveal gaps in the existing architecture.
2. Map tasks to content
Connect each priority task to its required measures, comparisons, and supporting details. Record what users need to know before they can act.
This mapping gives you a reason for each section and helps prevent additions based only on stakeholder preference.
3. Sketch the structure and navigation
Create a simple map of dashboards and their relationships. Define the overview, supporting views, entry points, and return paths.
Walk through realistic scenarios. Can a user identify an exception, inspect its contributing factors, and return to the original overview without rebuilding the context?
4. Build a low-fidelity prototype
Use representative labels and plausible sample data. Generic placeholders can hide problems with long names, ambiguous definitions, extreme values, or empty states.
Include filter behavior and at least one complete route from summary to detail. You do not need production data to test whether the organization makes sense.
5. Validate with users
Ask participants to complete tasks without explaining where to click. Observe whether they choose the expected section, understand the metrics, notice active filters, and interpret comparisons correctly.
Ask them to describe what they believe the data shows. Successful navigation does not necessarily mean successful understanding.
6. Document and maintain the decisions
Record metric definitions, navigation patterns, filter scope, naming conventions, and content ownership.
Set a review process for new dashboard requests. As the product grows, decide whether each request fits an existing view, needs a new section, or serves a distinct purpose that warrants its own dashboard.
How to Evaluate Whether the Architecture Works
Evaluate the experience through observable tasks and outcomes.
Useful indicators include task completion, time needed to find an answer, navigation errors, misinterpretation of metrics, and requests for help. Track whether users correctly recognize the active population and time period before drawing conclusions.
Compare results against an initial baseline where possible. A faster task is only an improvement if the answer remains correct.
Usage data can provide supporting evidence, but interpret it carefully. A short visit may indicate an efficient dashboard rather than low engagement. Frequent filter resets may reveal confusing defaults, or simply reflect legitimate exploration.
Combine behavioral data with interviews and usability sessions to understand why the patterns occur.
Bringing It All Together
Thoughtful information architecture gives each dashboard a clear purpose and makes its contents easier to navigate, compare, and interpret.
Structure establishes the overall organization. Navigation connects the views. Hierarchy directs attention. Grouping reveals relationships. Labeling explains meaning. Filtering supports focused exploration.
The design succeeds when users can move from a question to a trustworthy answer with minimal uncertainty about where they are, what they are seeing, or what to do next.
FAQs About Dashboard Architecture Principles
How does a clear structure make dashboards more useful?
A clear structure gives information a predictable home. Users can understand the available scope, find the right view, and explore details without searching through unrelated charts. The structure should reflect their tasks and decisions.
Why does dashboard navigation matter?
Navigation connects summaries with supporting information. Clear menus, contextual links, and drill-down paths help users investigate questions while retaining their place and relevant selections.
How does hierarchy guide users’ attention?
Hierarchy gives important outcomes appropriate prominence and places supporting information in a useful sequence. Visual emphasis should reflect the underlying relationships so users can distinguish primary insights from explanatory detail.
How does grouping improve the dashboard experience?
Grouping related metrics reduces the effort needed to compare results and understand connections. Consistent layouts, scales, and definitions make comparisons between categories or customer segments more reliable.
What makes dashboard labels effective?
Effective labels are specific, familiar, and consistent. They explain what a metric represents and provide necessary context, such as units or time periods. Definitions should be accessible when a short label cannot communicate the full meaning.
When should filtering be used to personalize dashboards?
Filtering is useful when people need different views of the same underlying information. It lets them focus on relevant regions, teams, products, or periods while preserving a common dashboard structure. Active selections and their scope should remain visible.
How many dashboards should a product include?
There is no universal number. Create separate dashboards when audiences, tasks, or information needs differ meaningfully. Use filters or saved views when the purpose and layout remain largely the same.
How should teams maintain dashboard information architecture?
Assign ownership, document shared definitions, and review new content against existing tasks and structures. Periodically check for duplicate views, inconsistent labels, outdated metrics, and navigation paths that no longer match how people work.
Dworkz is a San Francisco–based UI/UX design and development firm helping B2B SaaS companies turn complex data into intuitive digital experiences. Ready to put these dashboard design principles into practice? Let’s talk.
