Data Table Design: Best Practices & Examples

Tables arrange information in rows and columns. This setup makes it easy to find exact values and compare specific data points.

Deciding between a table or another type of visualization depends on your data and your goals. Use tables when you need precision and detailed comparisons. Charts are better for showing patterns and trends.

Grid lines

Choose tables when readers need to find exact values or compare details. If your data is dense and you want to highlight trends or differences, a chart might work better.

Keep formatting subtle

Thick grid lines and bold row shading can make large tables look crowded and distract from the data.

Small tables usually do not need much separation between entries. Good alignment, enough spacing, and light header lines help readers follow values without extra clutter.

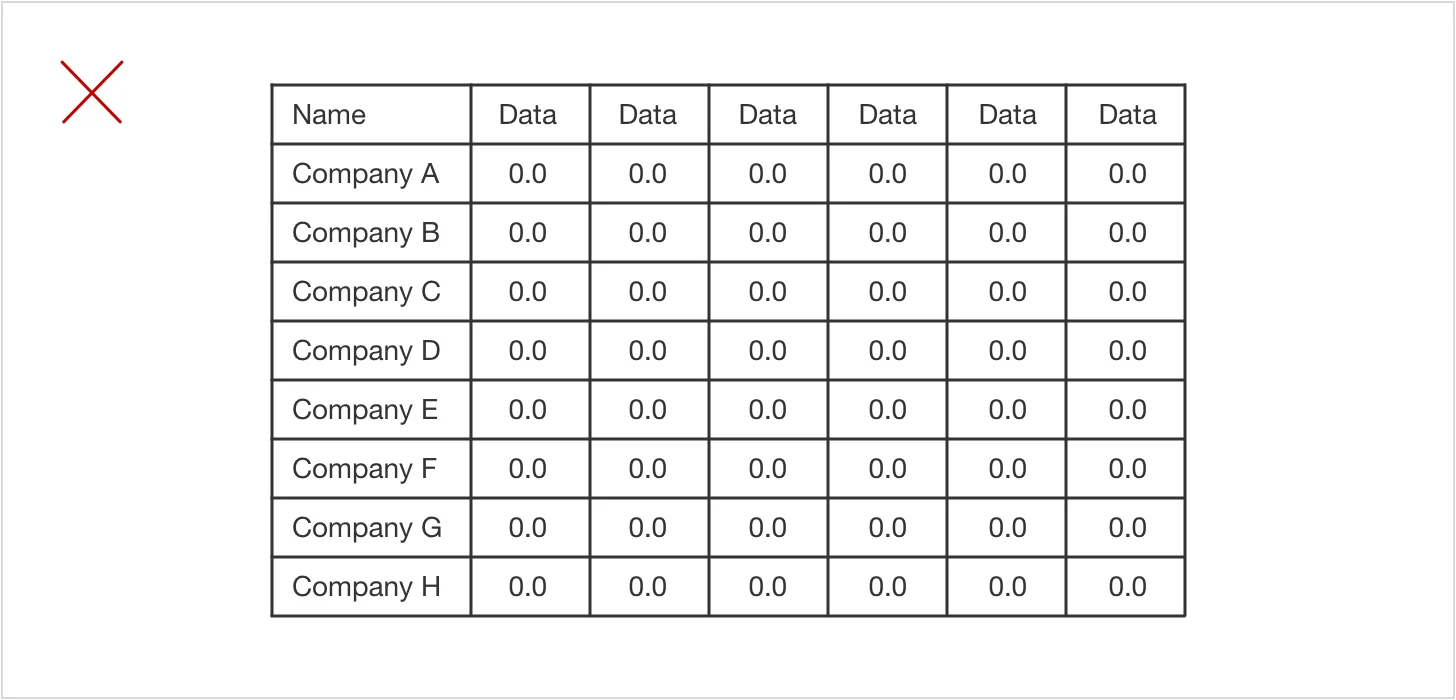

Table with heavy grid lines around every cell, marked with a red X to illustrate excessive visual clutter.

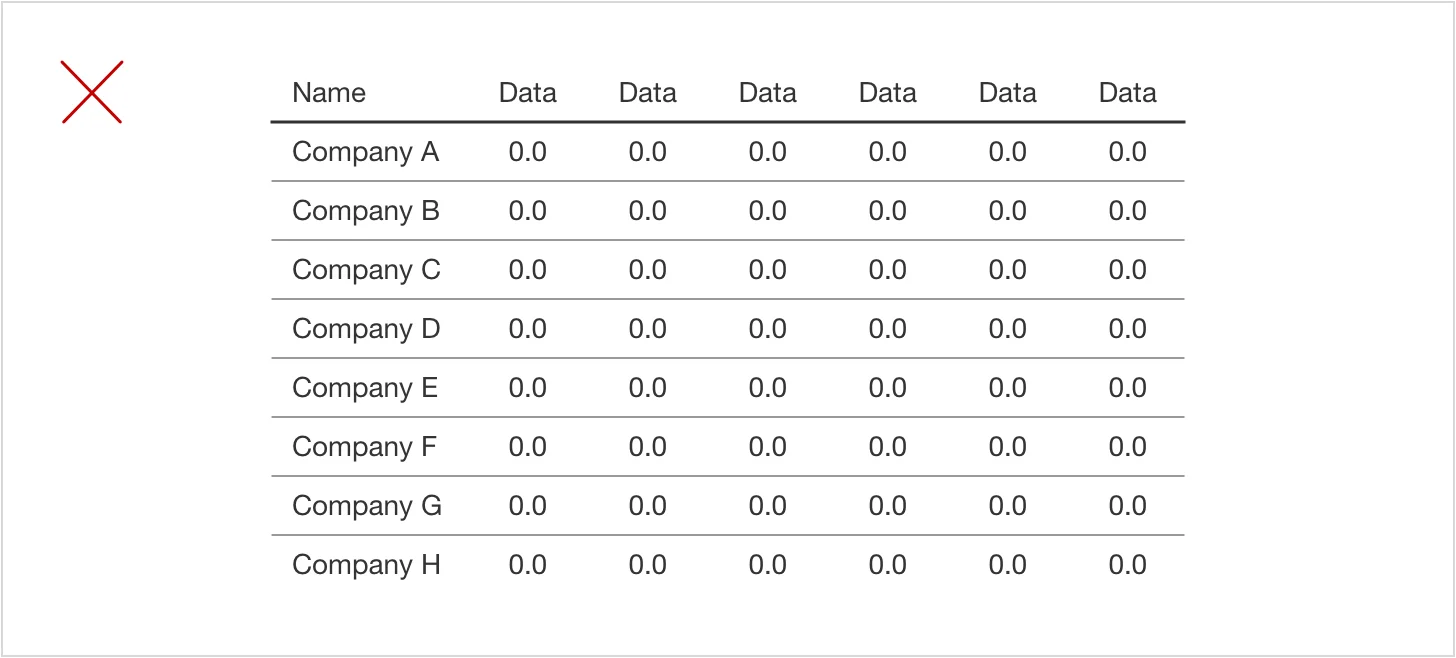

Table with horizontal lines separating every row, marked with a red X to illustrate unnecessary row dividers.

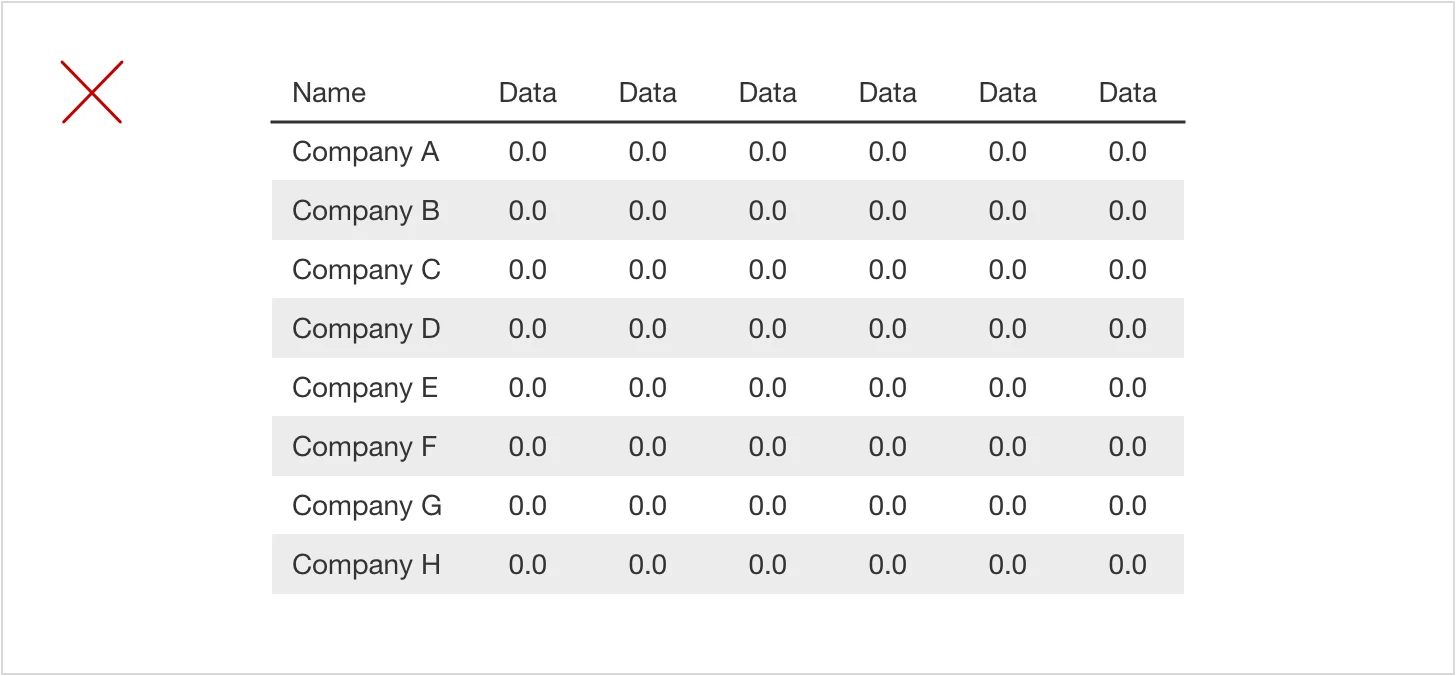

Table with alternating gray row shading, marked with a red X to illustrate unnecessary striping in a small table.

Subtle visual guides

Adding thin horizontal lines every few rows can help readers track values. Wide tables might need more lines, but narrow tables with only two columns often do not need any. Use light shading only to highlight important columns or entries.

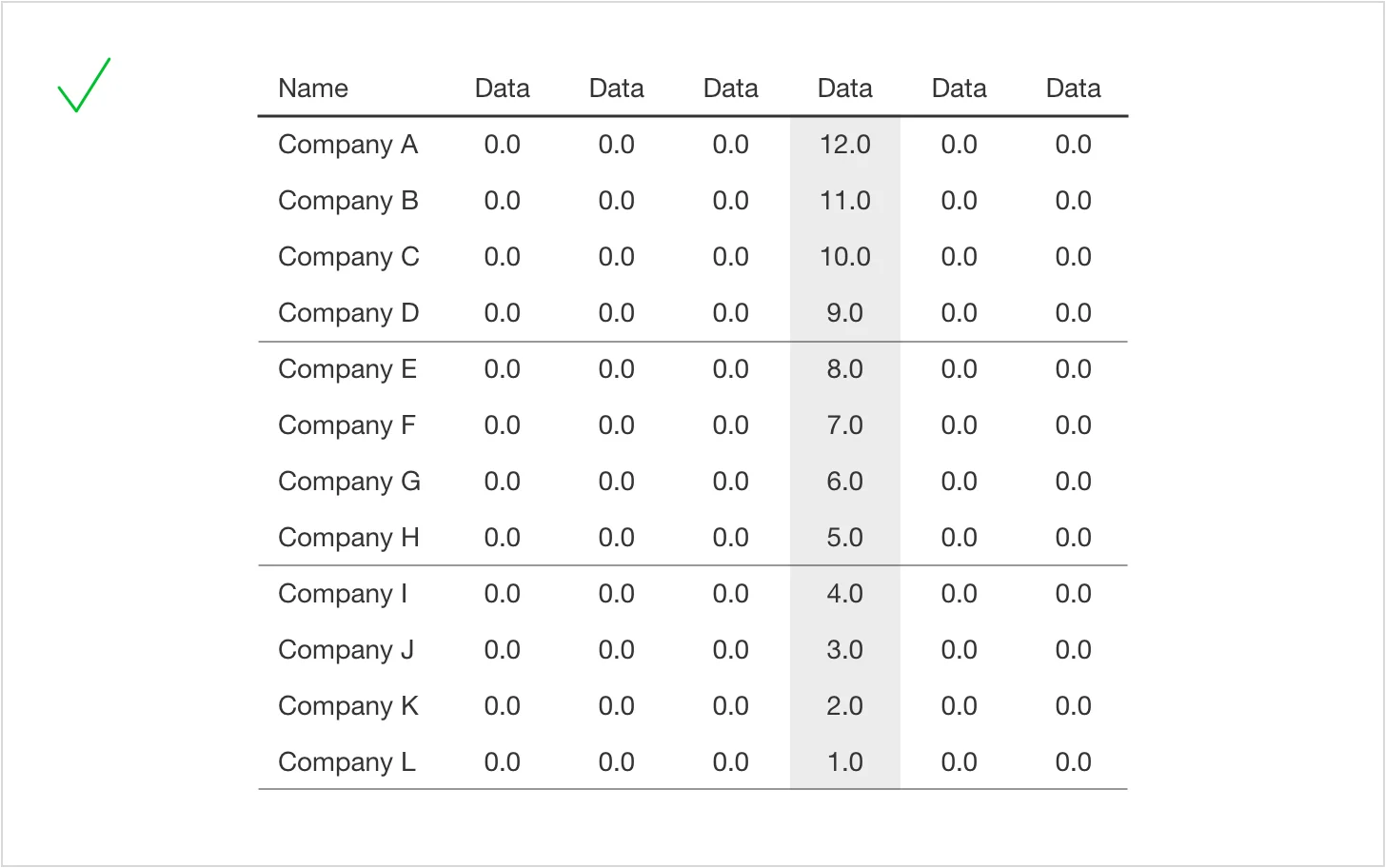

Table with thin horizontal dividers every four rows and one shaded column, marked with a green check to demonstrate clear visual grouping and emphasis.

Add charts within tables

If you have space, add small bars or simple visuals to the main column. This lets readers compare values quickly and still see the exact numbers.

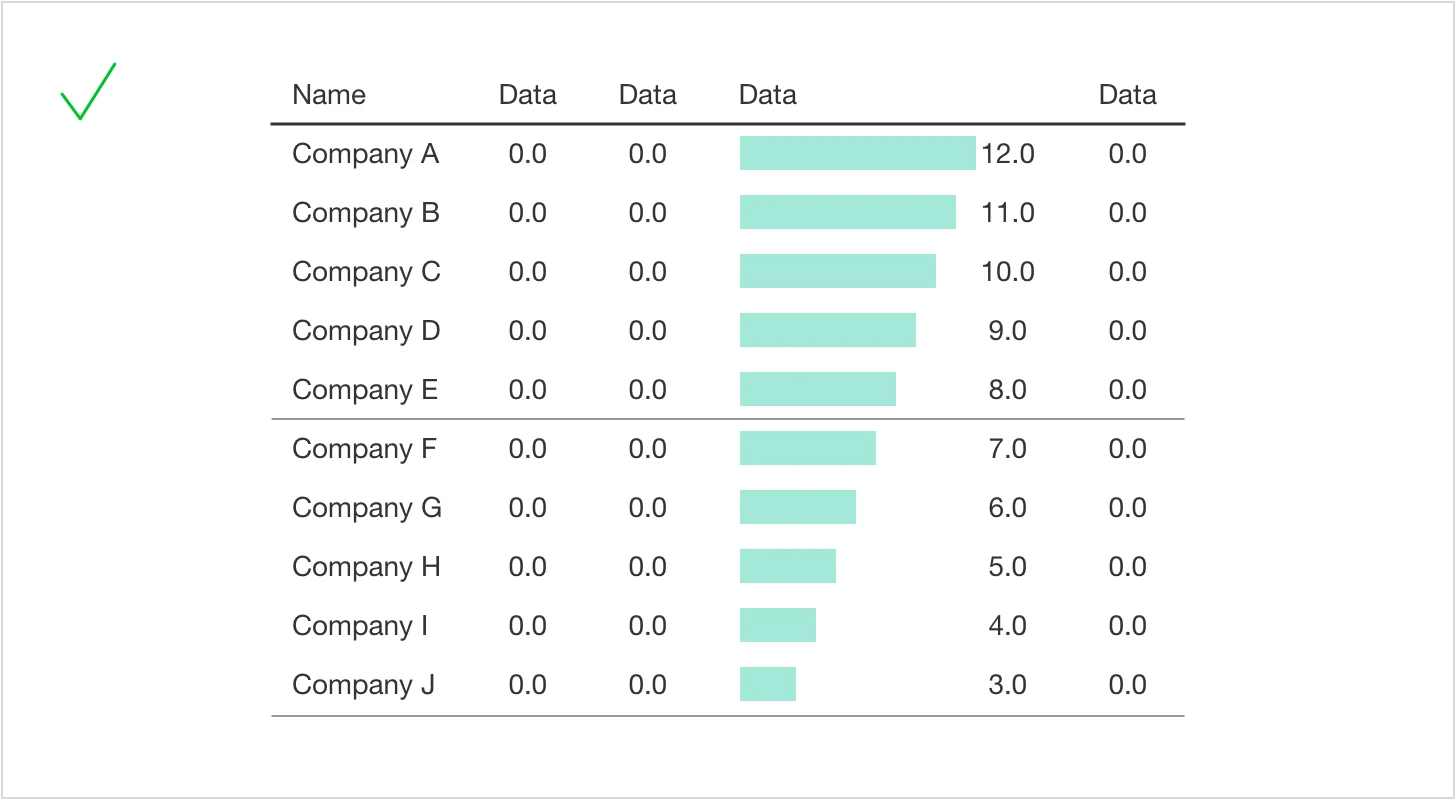

Table with horizontal bars beside numeric values, marked with a green check to show how embedded charts make comparisons easier.

Tables are a practical way to organize lots of numbers or descriptions. Use them for detailed comparisons or when readers need exact values. If you want to show a pattern or highlight a difference, a chart can make your point clearer.

Aligning and Ordering Numbers

If your table has several data series, put the values you want to compare in the same column. This makes it easier for readers to scan and spot differences.

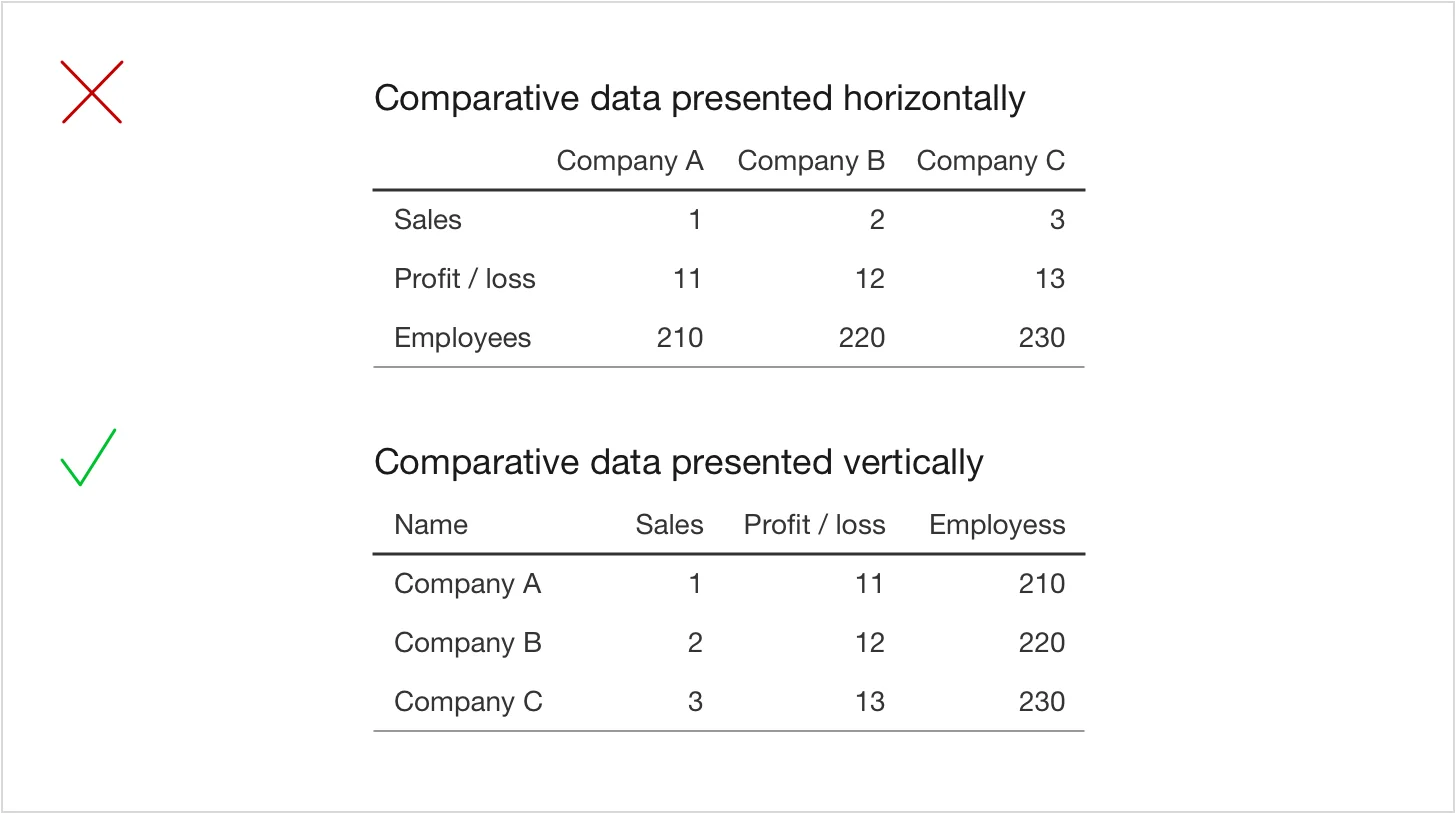

Two table layouts comparing company metrics: companies across columns marked with a red X, and companies down rows marked with a green check for easier vertical comparison.

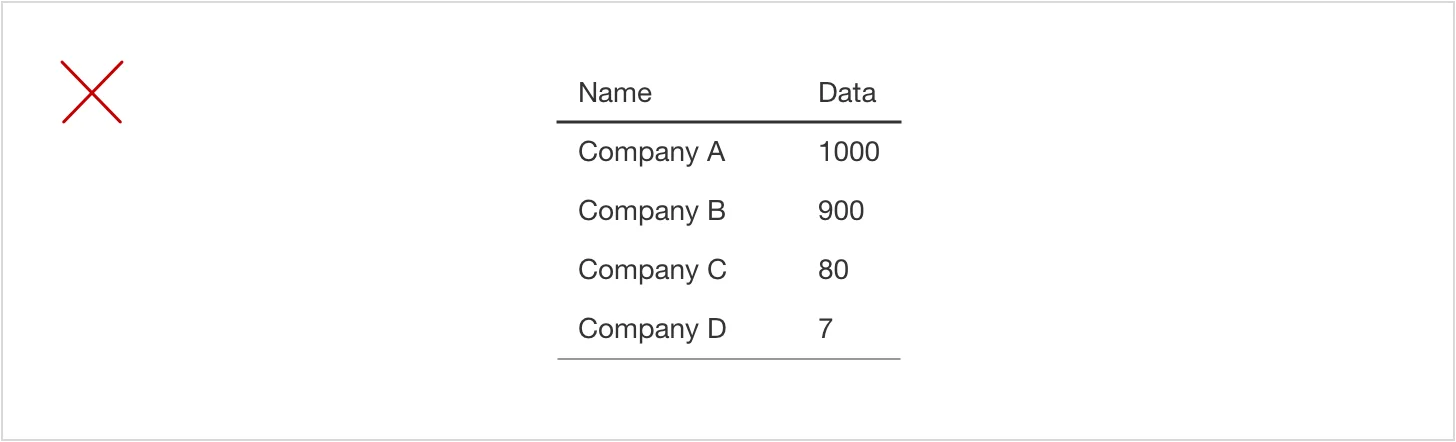

Table with left-aligned whole numbers of different lengths, marked with a red X to show misaligned place values. — Never align whole numbers flush left

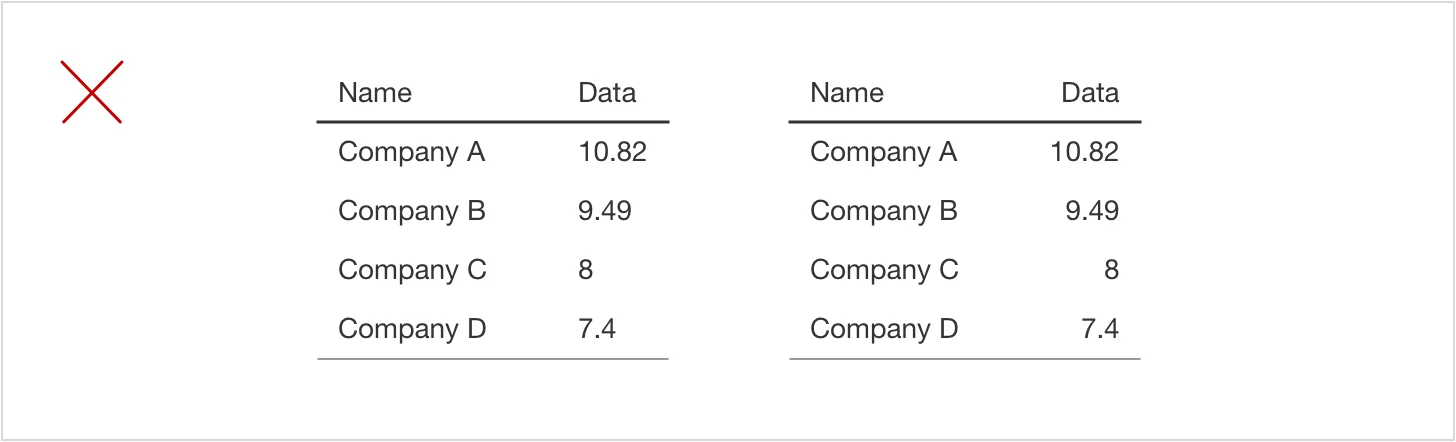

Two tables showing left-aligned and right-aligned numbers with uneven decimal places, marked with a red X to highlight misaligned decimal points. — Never align decimals flush left or flush right

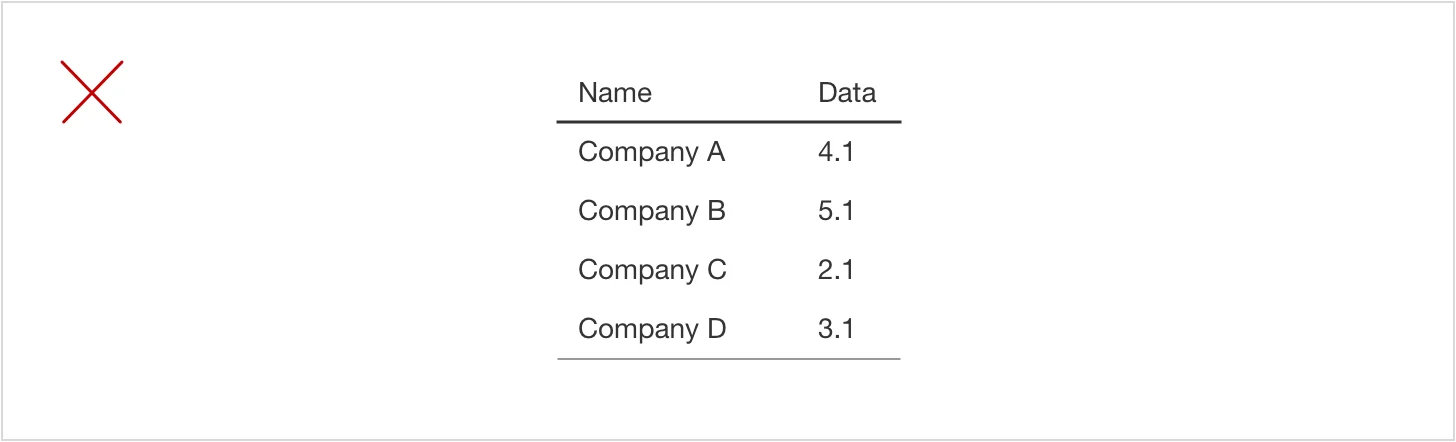

Table listing companies A through D with unsorted values of 4.1, 5.1, 2.1, and 3.1, marked with a red X. — Never order entries randomly

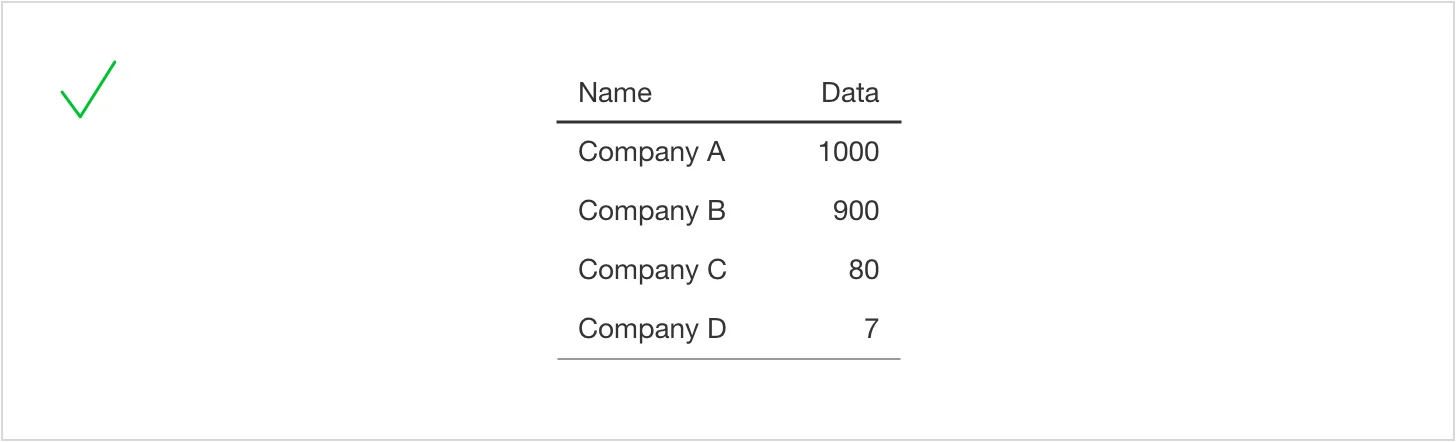

Table with right-aligned whole numbers of different lengths, marked with a green check to demonstrate aligned place values for easier comparison. — Align whole numbers flush right

Align numbers by their decimal points

Keep the same number of decimal places in each numeric column, even for whole numbers. This makes it easier to compare values.

Example Round each value to one decimal place and align the decimal points vertically. Display whole numbers with “.0”—for example, show 8 as 8.0—to keep the formatting consistent.

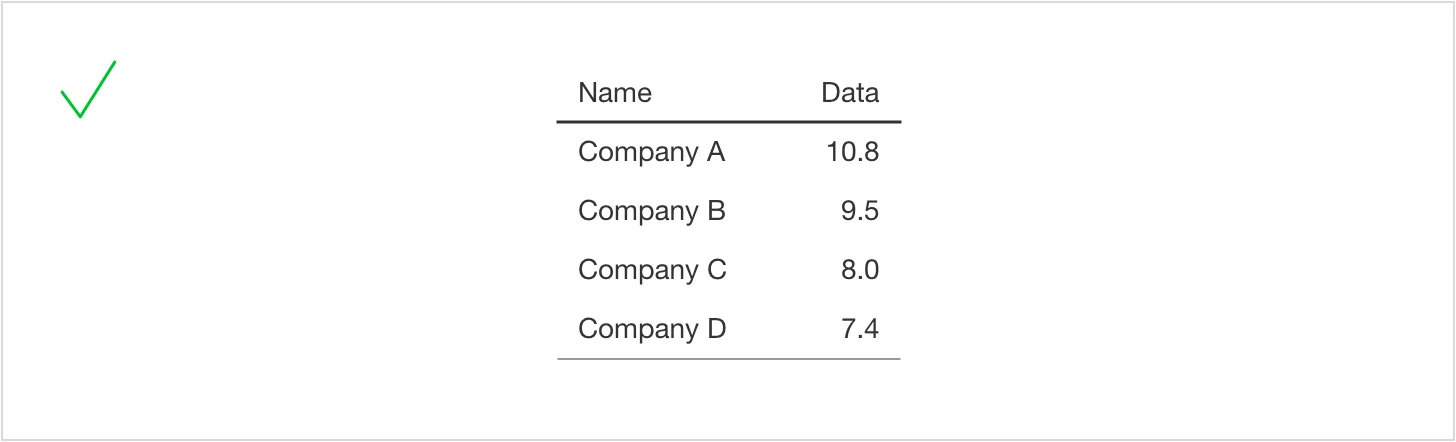

Table with numbers aligned by decimal point and formatted to one decimal place, marked with a green check to illustrate consistent numeric formatting.

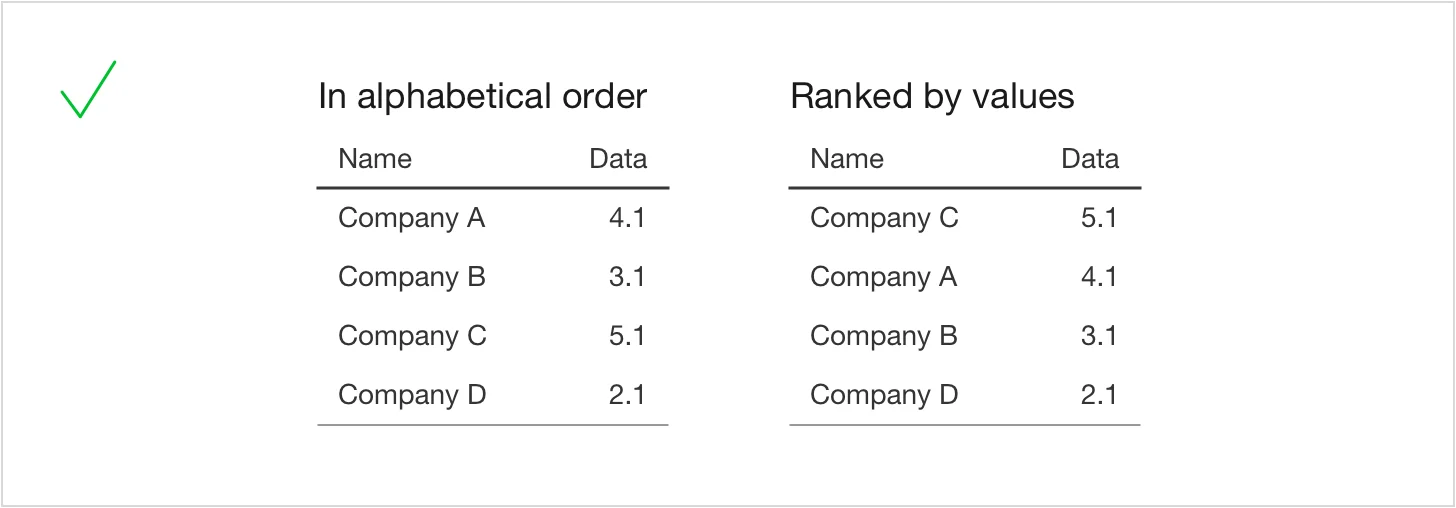

Two tables showing company data sorted alphabetically and ranked by descending value, marked with a green check to demonstrate clear ordering. — Order entries logically

You can center small whole numbers in their columns.

Table with small whole numbers centered in the data column, marked with a green check to illustrate acceptable alignment for short numeric values.

If every value in a column uses the same unit, show the symbol, like $ or %, only next to the first value. Keep the numbers lined up for easy comparison.

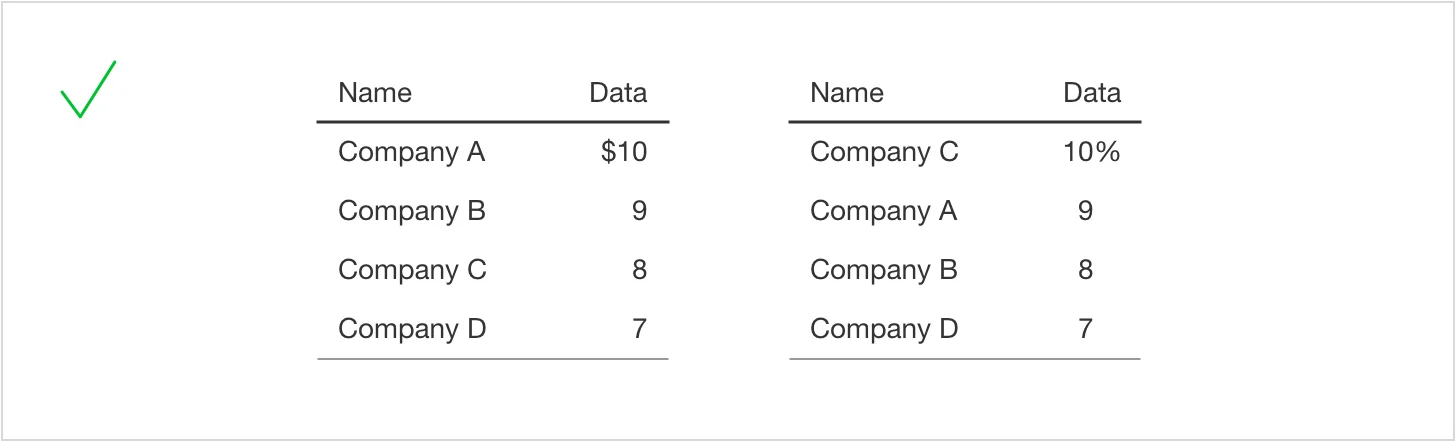

Two tables showing dollar and percentage symbols only beside the first value, with numerals aligned vertically and a green check indicating correct formatting.

Summary

Tables present information clearly and precisely, making them useful for ranking results, searching datasets, comparing values, and displaying a range of metrics. Their versatility makes them a strong choice when readers need to examine specific details.

Thoughtful additions such as color gradients, sparklines, and custom HTML formatting can highlight patterns and trends, turning a basic grid into a richer, more informative view of your data.
